Honey extractor Lysoň BASIC 6 frames, reversible. DADANT - 230V - P90
On order
We present the 6-frame BASIC honey extractor designed for efficient extraction of honey from frames. This model is an indispensable helper for beekeepers who desire a reliable device with high capacity.
Reversible Honey Extractor Lysoń BASIC 6-Frame Dadant – 230 V – P90
Need to boost performance during honey harvesting, reduce the time spent extracting, and ensure hygiene at the same time? The reversible honey extractor Lysoń BASIC with a drum diameter of 900 mm is designed for efficient extraction of Dadant frames and fits perfectly into the operation of medium and larger apiaries. Thanks to the electric drive and spacious frame baskets, you can extract 6 Dadant frames (or up to 12 Dadant ½ frames) in a single cycle. The result is smoother work in the honey house, fewer unnecessary downtimes, and more time to care for your bee colonies.
Why you will appreciate this honey extractor in practice

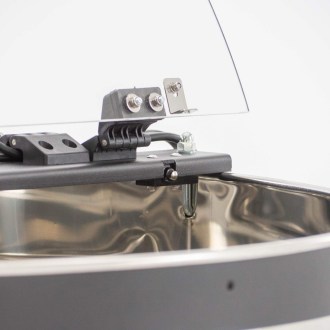

Safe operation during every extraction: The honey extractor is equipped with a safety switch that immediately stops the basket rotation when the 4 mm plexiglass lid is opened. This increases operator safety even during a brisk work pace or when helpers are involved.

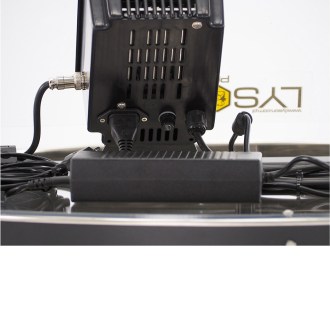

Automation that saves your hands and time: The HE-01V control unit with a digital potentiometer offers 2 manual modes and 9 automatic programs. You can easily adjust the extraction cycles according to the type and viscosity of the honey. While the extractor is running, you can continue uncapping the next combs and take your honey harvesting to a significantly more efficient level.

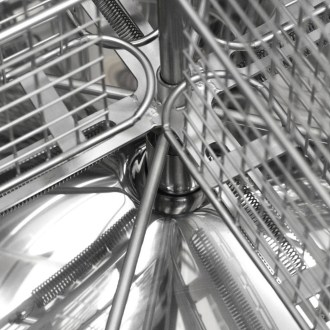

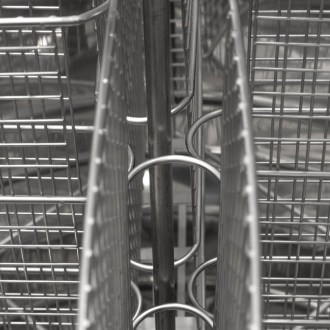

Stainless steel for long service life and a clean honey house: The drum and frame baskets are made of acid-resistant stainless steel, which is durable, easy to wash, and meets strict food-grade requirements. The shaped (tapered) bottom promotes smooth honey flow toward the honey gate and helps minimize residue in the drum.

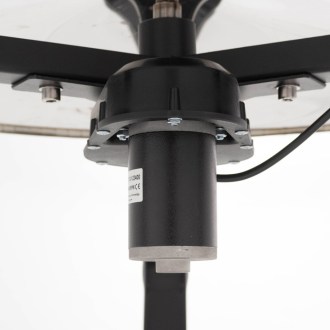

Ergonomics and stability without compromise: The legs can be mounted at two heights, allowing you to set the height of the stainless steel honey gate to 370 mm or 410 mm from the ground. This makes it easier to drain honey into standard honey containers without unnecessary bending. The bottom-mounted motor on the cross beam also contributes to excellent stability even with a fully loaded basket.
Space-saving design and simple assembly: The honey extractor is delivered in a sturdy cardboard box in a disassembled state. Assembly is intuitive and can be done without special tools. After the season, the legs can be easily removed, saving space in your honey house, workshop, or garage.
Technical specifications and parameters
| Product line | BASIC LINE (delivered in a box for self-assembly) |
| Extractor type and capacity | 6-frame, reversible (6× Dadant or 12× Dadant ½) |
| Drum diameter and height | Diameter Ø 900 mm, height 735 mm |
| Frame basket size | 425 × 325 mm (stainless steel rods Ø 2 and Ø 5 mm) |

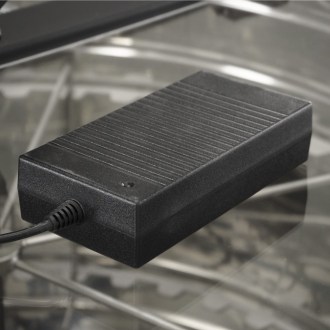

| Drive and motor | Electric bottom-mounted, 12 V / 150 W |
| Power supply | 230 V |
| Control unit | HE-01V (digital potentiometer, 9 automatic programs) |
| Drum material and sheet thickness | Stainless steel, thickness 0.6 mm |
| Honey gate | Stainless steel, size 6/4" |
| Cover and legs | 4 mm plexiglass, two-part foldable legs (powder-coated) |
The Lysoń BASIC is a honey extractor that offers a balanced price-to-performance ratio and brings modern comfort to the honey house. Simplify your extraction, reduce physical strain, and complete your honey harvest faster, even in larger volumes. With a two-year warranty, you also have the assurance of reliable operation for many beekeeping seasons.
Video for the 6-frame variant:
