Honey Extractor Mellarius MaxiLine 9 frames radial with 230V electric motor P64
On order
Radial honey extractor for nine frames with electric drive 230 V with power of 110W. The basket width is 25 cm, so the extractor is suitable for most frames. The honey extractor is made of polished stainless steel sheets.
Radial Honey Extractor Mellarius MaxiLine for 9 Frames: Professional Solution for Your Honey Harvesting
Do you need a honey extractor that speeds up honey harvesting, makes operation easier, and keeps both honey and equipment maximally clean? The Mellarius MaxiLine series radial honey extractor is among the best we offer in this category. The 9-frame model is equipped with a reliable 110 W electric motor and is ready for intensive operation during the main honey flow. The radial basket allows extraction from both sides of the comb at once, eliminating time-consuming frame turning and making the entire process significantly faster.
Construction for Years of Operation
The MaxiLine series is designed for beekeepers who want a solid, stable, and precisely manufactured honey extractor without compromises. We manufacture the drums from stainless steel sheets 0.8 to 1 mm thick with a polished food-grade surface. Plasma welding ensures smooth joints where honey residues and impurities don't accumulate, supporting hygiene and easy cleaning. Robust legs hold the extractor firmly even when extracting full, heavier combs and help reduce vibrations.
Conical Bottom That Helps Extract Honey to the Last Drop
A practical difference from standard honey extractors is the conical bottom designed so honey flows automatically to the lowest point. The stainless steel gate valve with shear closure is located right here, so honey flows smoothly and completely – without tilting the machine and without unnecessary manipulation at the end of extraction. The result is time savings, a cleaner workplace, and simpler maintenance.
Gentle Extraction and Protection of Bee Work

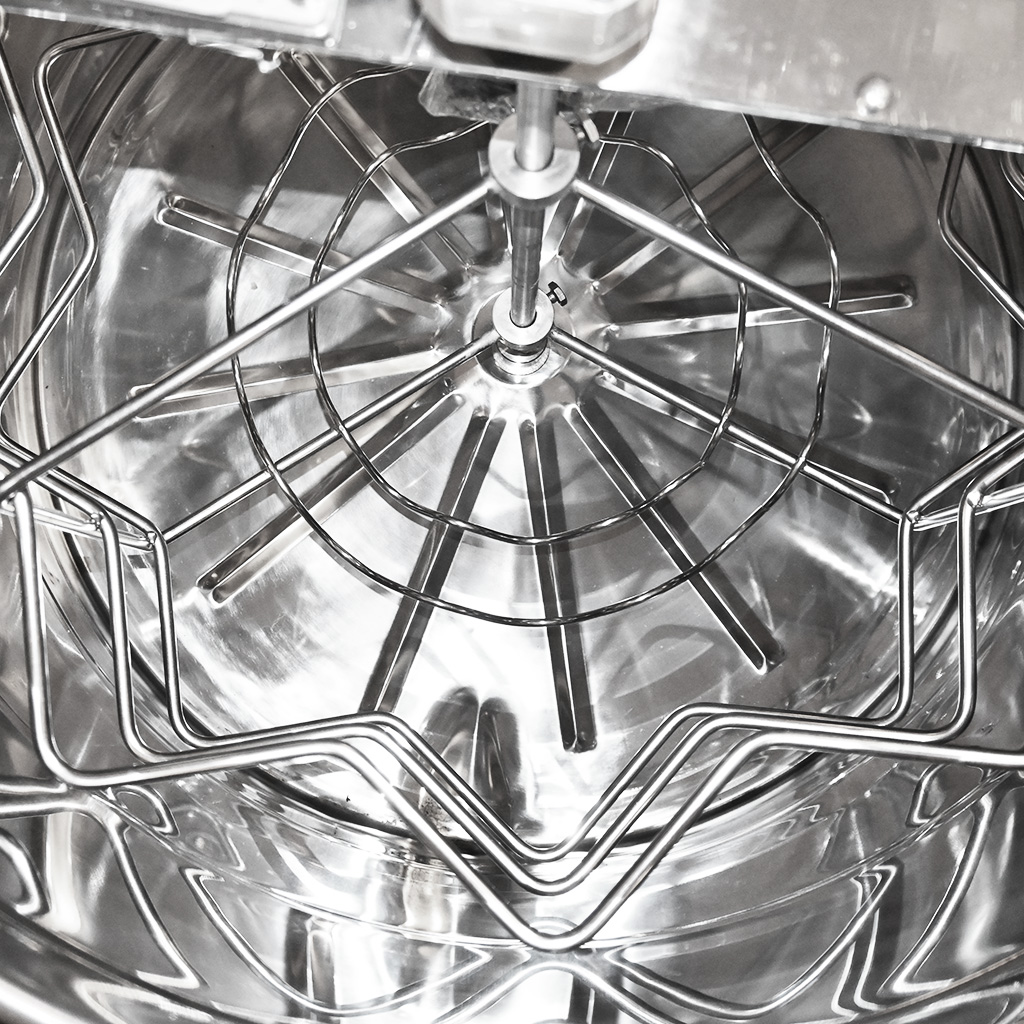

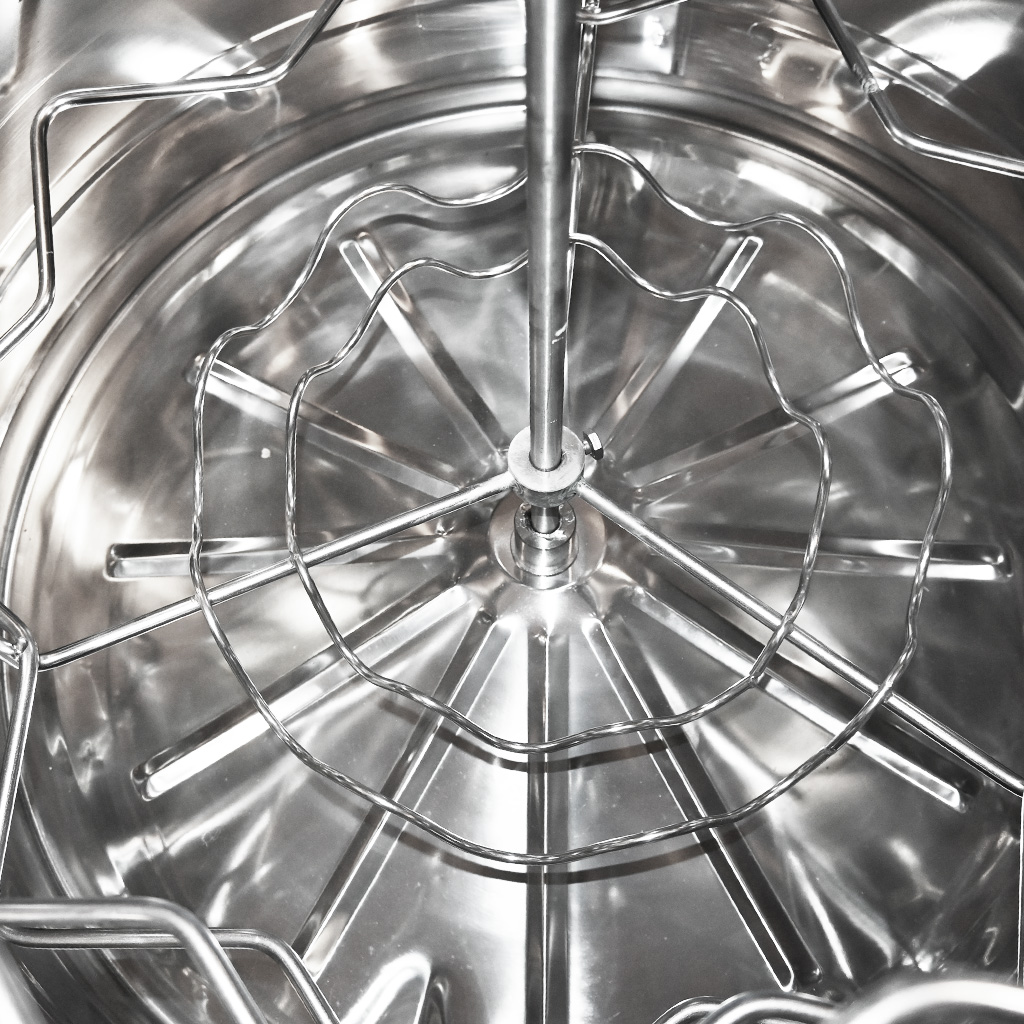

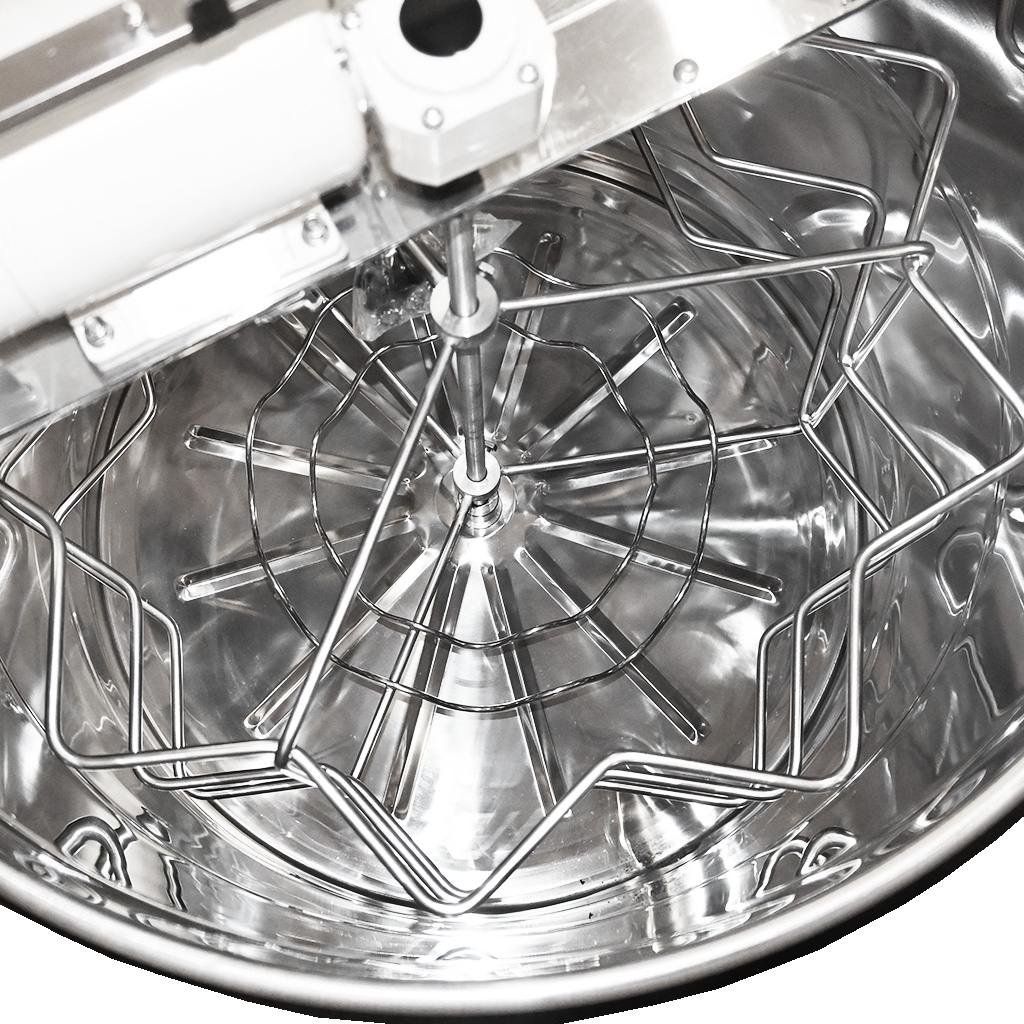

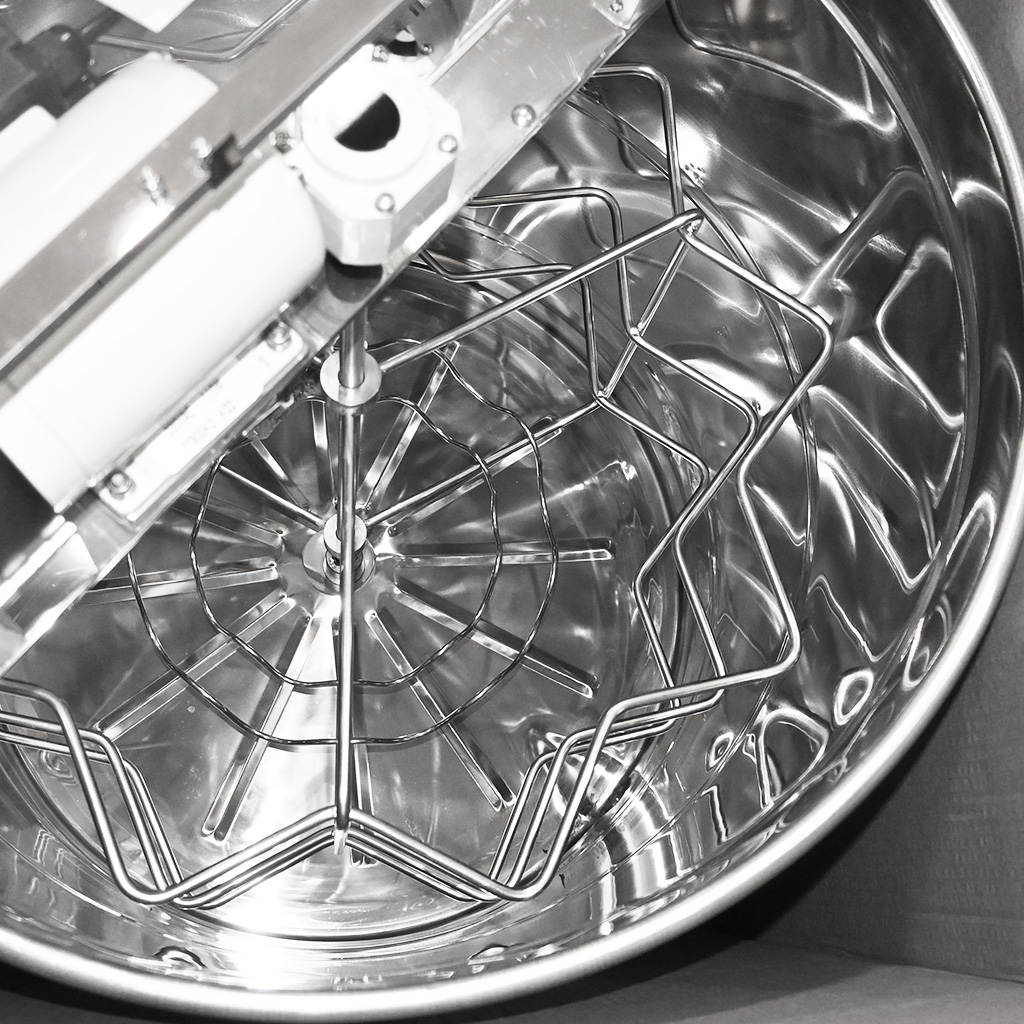

Healthy and undamaged combs are essential for beekeepers – you return them to the colony and bees can quickly continue their work. The basket is therefore equipped with a dense mesh of stainless steel wires that distributes centrifugal force over a larger area. This minimizes the risk of wires cutting into the wax, and combs remain in good condition after extraction.
Smooth Speed Control and Reversible Operation

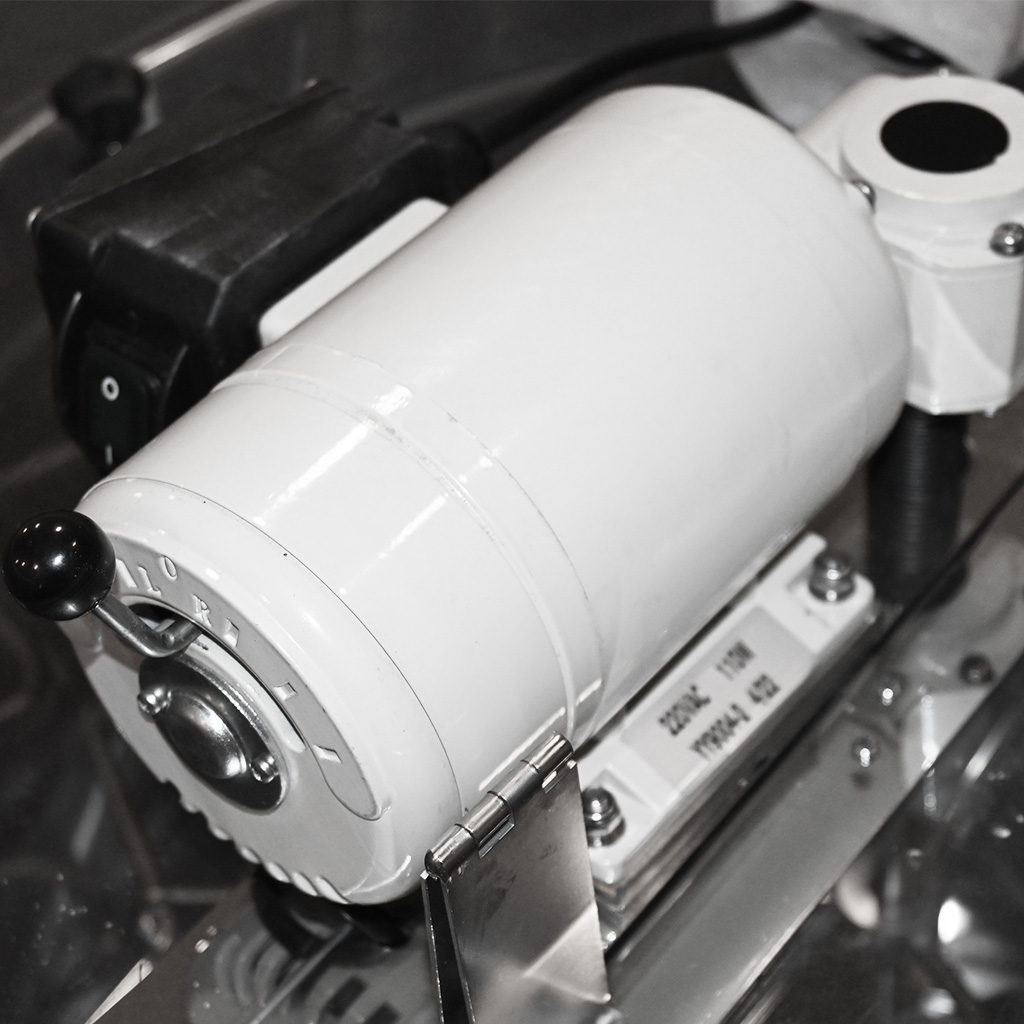

The 110 W motor offers smooth manual speed control and the ability to change rotation direction. Because bees build cells at a slight angle, reversible operation helps release honey better even from deeper cells. The drive unit is mounted on top of a fixed bar, which facilitates quick disassembly of the basket and motor and shortens the time needed for cleaning after honey harvesting.
Technical Specifications of the Honey Extractor
| Basket Type | Radial with shaft |
| Capacity | 9 frames |
| Basket Width (segment) | 25 x 48 cm |
| Drum Outer Diameter | 64 cm |
| Motor Power | 110 W (230 V power supply) |
| Speed Control | Smooth, manual |
| Rotation Direction | Reversible (left/right) |
| Material | Polished stainless steel (0.8 – 1 mm) |
| Gate Valve Height from Ground | 38 cm |
| Total Height | 120 cm (including motor) |
Why Choose Mellarius MaxiLine
Mellarius MaxiLine is more than just honey house equipment – it's an investment in more comfortable work, better honey harvesting organization, and long-term reliability. Thanks to easy disassembly of legs and top bar, the extractor is compact even where space is limited. Precise workmanship, thoughtful details (such as rounded basket elements for easier cleaning), and emphasis on hygiene make it a sought-after helper for hobby beekeepers and small operations alike. You'll have more time for bees – and fewer worries during extraction.
Note: Honey extractors are supplied with legs in black or gray color. Motor color may vary (blue, red, white) according to current stock availability, without affecting performance and technical parameters.
