Mellarius MaxiLine D52 manual 5/10 frame honey extractor

489,30 €
excluding VAT:404,38 €
In stock
SKU: M215
mellarius-logo-1
My Wishlist
Compare

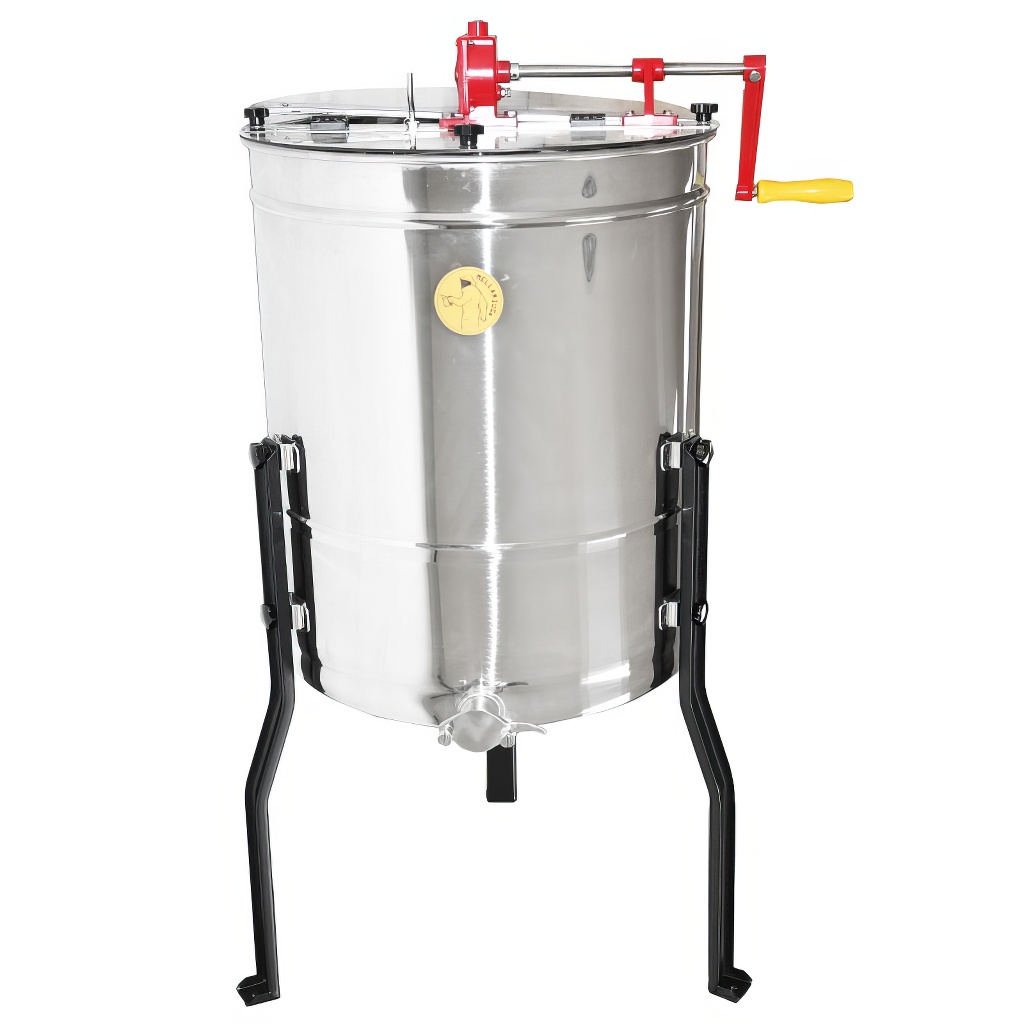

Tangential honey extractor for five frames (or radial for ten frames) with manual drive, equipped with a freewheel and brake. The basket width is 24 cm, so the extractor is more suitable for extracting Langstroth frames – 39x24 frames fit in with difficulty, therefore we do not recommend this model for extracting them. The extractor is made of polished stainless steel sheets, certified for contact with food. Top-of-the-line design with a conical bottom and many other innovative features.

About Mellarius MaxiLine Series Honey Extractors

The top-of-the-line offering among our honey extractors. Mellarius MaxiLine Honey Extractor is a guarantee of high quality and long service life. These extractors are manufactured from thicker stainless steel sheets (0.8 to 1 mm) and are equipped with heavy-duty legs that increase the stability of the extractor. Every Mellarius MaxiLine honey extractor is equipped with a sloped bottom, thanks to which honey comfortably flows down to the honey gate. There is no need to tilt or further handle them. A wide range of manual and electric honey extractors in tangential or radial variants.

Modern Construction

Mellarius MaxiLine series honey extractors feature modern construction with the option of detachable legs. The drum of the extractor is made of food-grade stainless steel of sufficient thickness (0.8 to 1 mm), so that unwanted dents cannot easily occur. The entire construction of the extractors is manufactured using plasma welding. During construction, emphasis is placed on smooth surfaces that are easy to clean.

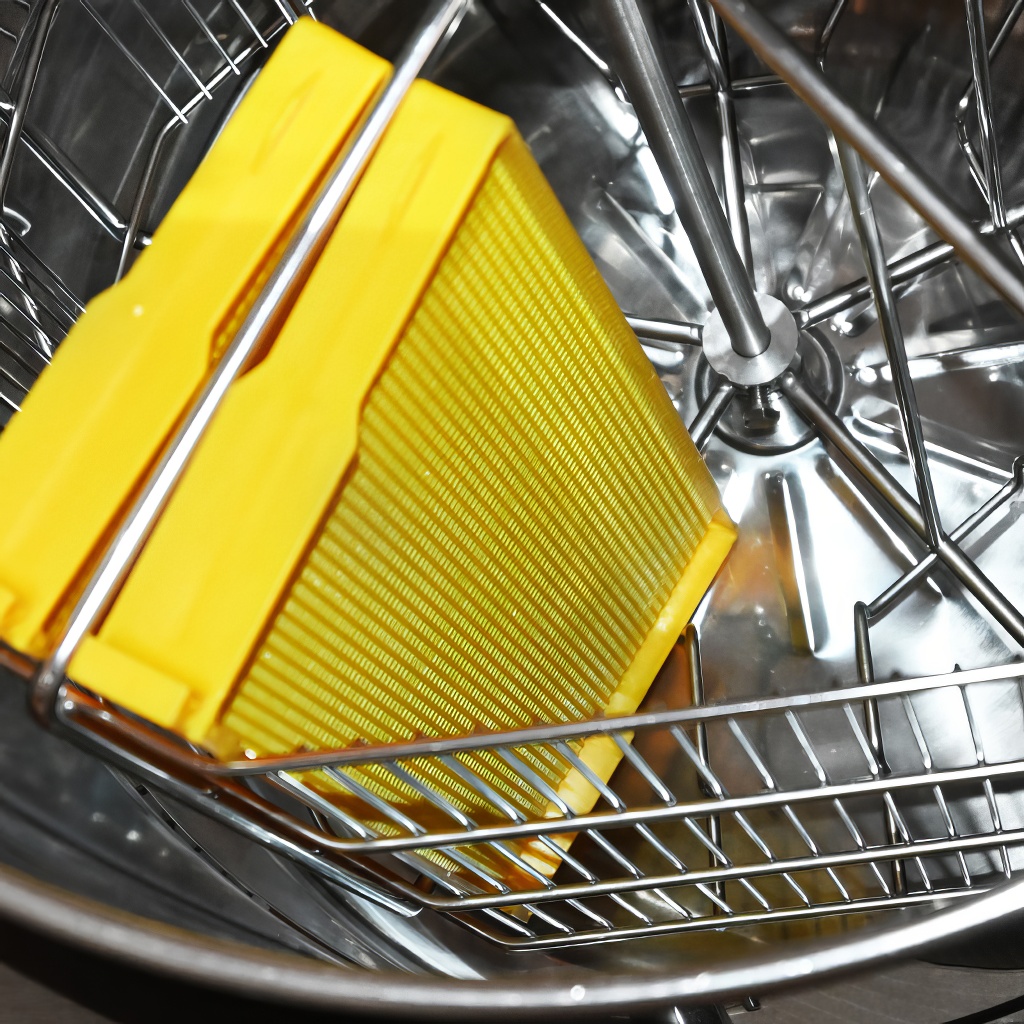

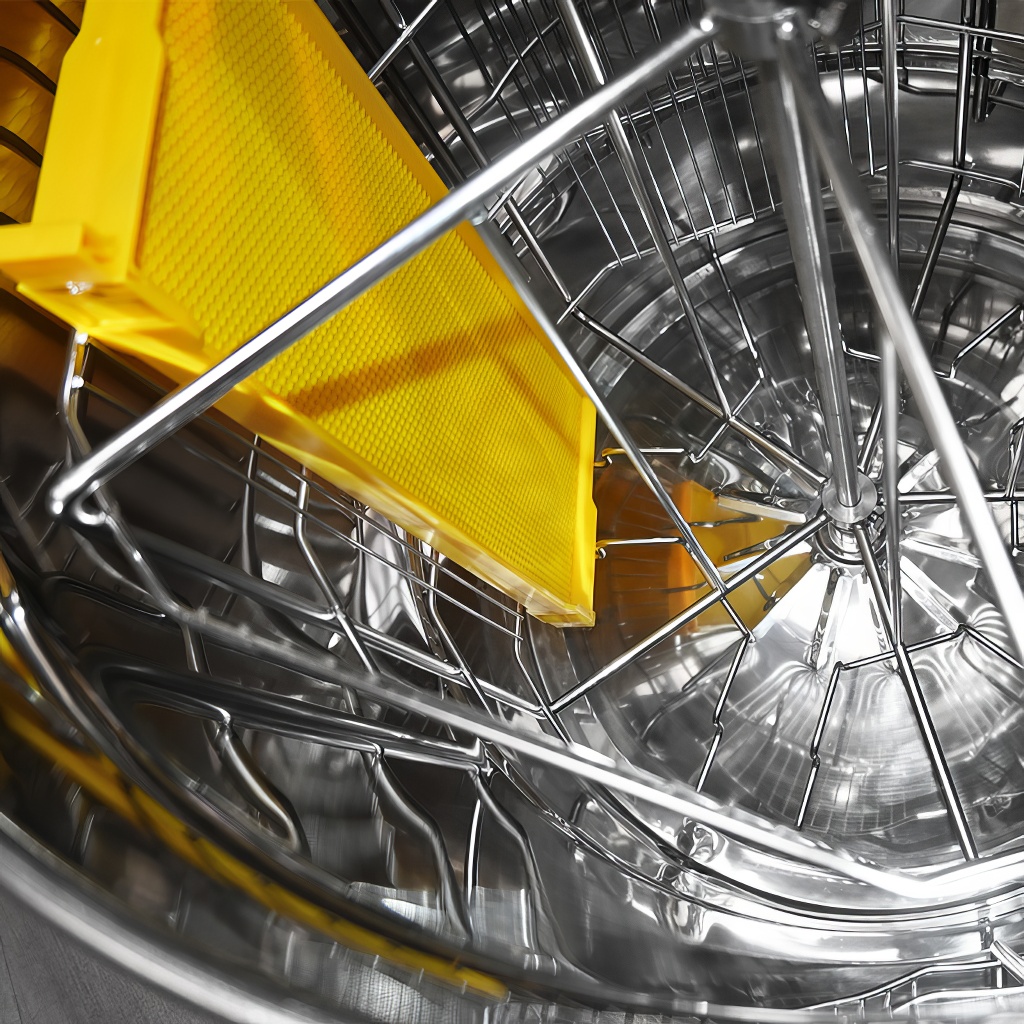

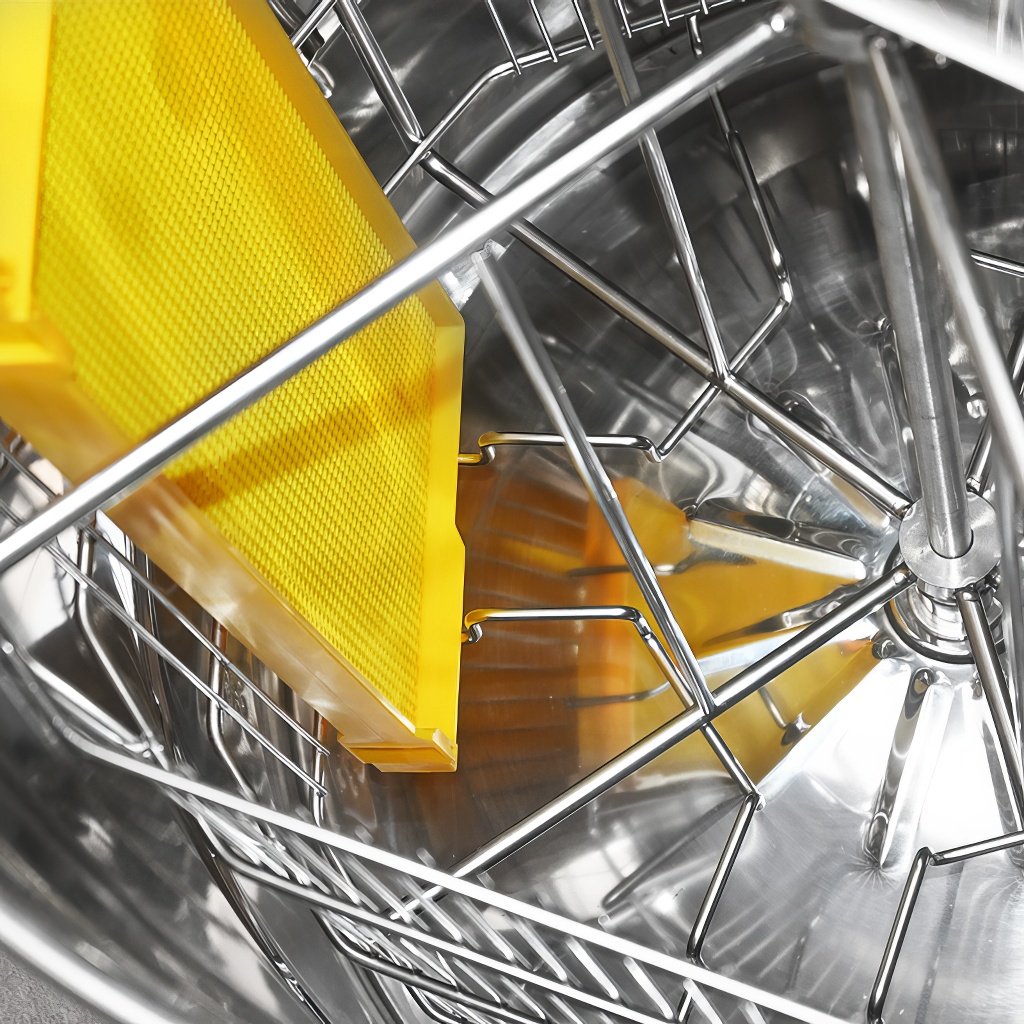

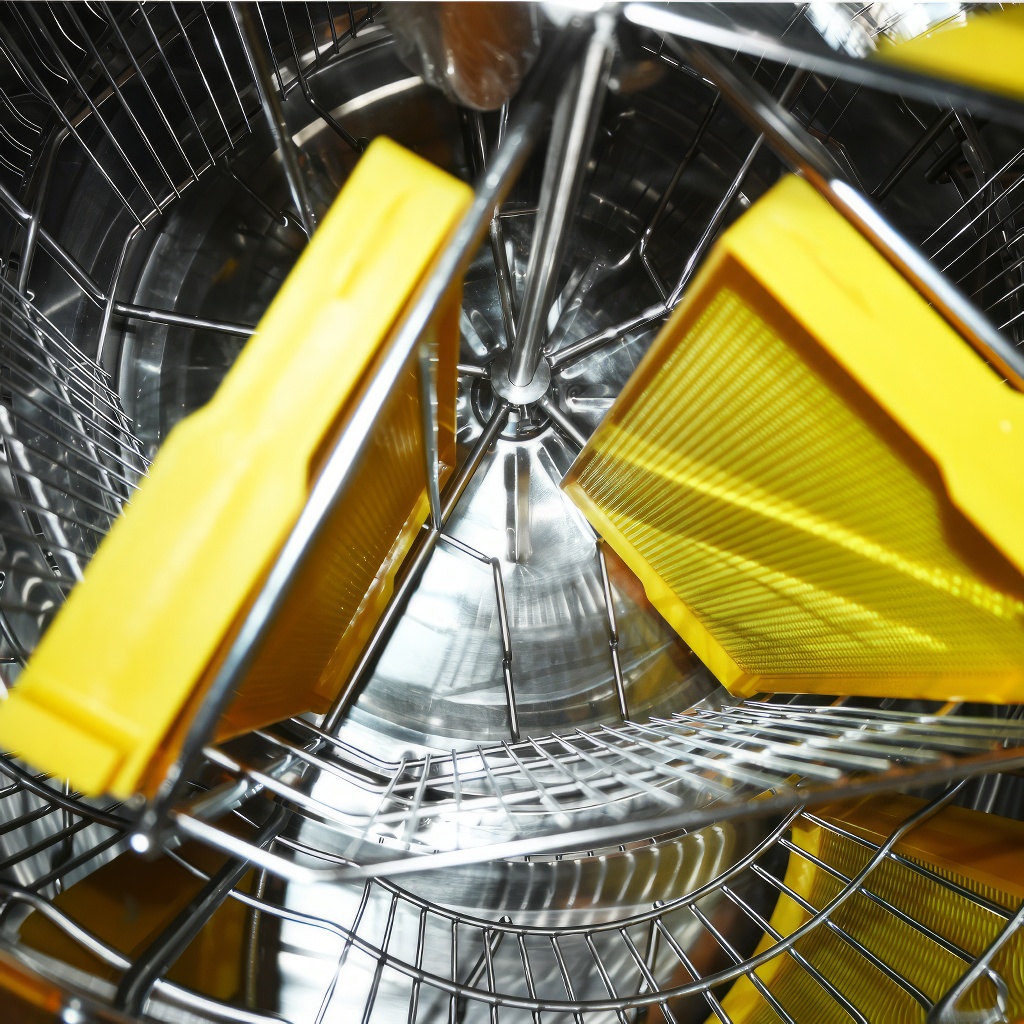

The extractor baskets are manufactured with a denser mesh of stainless steel wires, so that the force on the comb during extraction is distributed over a larger area, preventing the wires from cutting into the honeycomb. Round bars are used for the basket production, which are resistant to twisting. Round surfaces without sharp edges are also easier to clean.

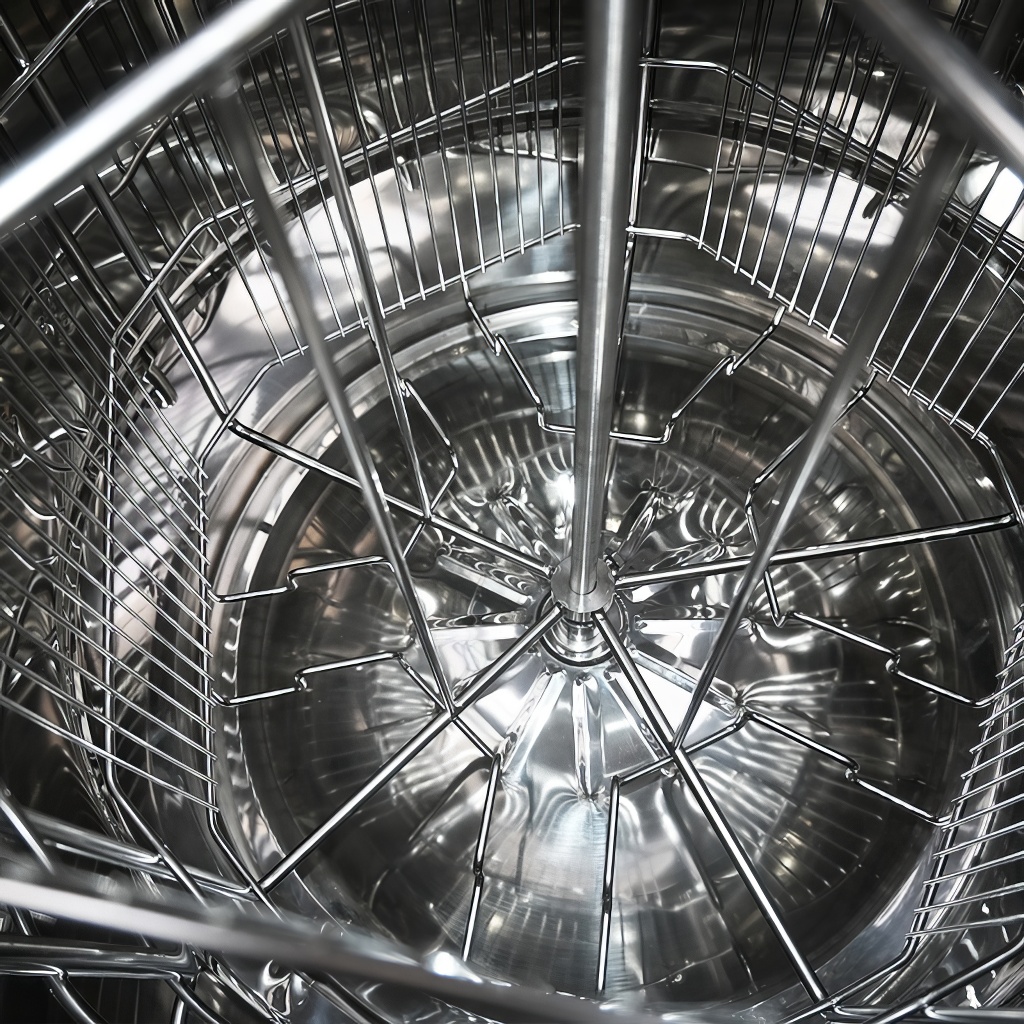

The extractors are fitted with an innovative conical bottom, into the lowest part of which a welded-in stainless steel honey gate with a guillotine valve is recessed. This ensures that all honey always drains completely from the extractor without any residue.

The leg system is also innovative – the legs are positioned and attached to the extractor in such a way as to achieve maximum stability. The legs are made of heavy-duty material and their own weight contributes to stability during extraction. Thanks to a simple yet sturdy connection, the legs can be easily removed, making the entire extractor much more compact for storage until its next use.

Easy Disassembly

The drive system is always located in the upper part of the extractor, which allows for easy maintenance. Thanks to this solution, the extractor basket rests freely on a ball bearing at the bottom. The drive is mounted on a clamping bar, which also features wide hinges for the plexiglass covers. The clamping bar with the drive is sufficiently heavy-duty, again made of polished stainless steel material for easy maintenance. After removing the upper bar with the drive, which is fastened with two star screws, the entire drive can be easily taken off. Likewise, the entire basket can be easily removed from the extractor, allowing you to conveniently clean both the extractor and the basket separately.

Proven Manual Drive with Brake

High-quality manual drive with a gearbox, thanks to which no great force is needed when turning. The crank handle is made of tough, heavy-duty material that ensures strength and stability.

The force of the manual drive is transmitted to the extractor shaft via a gear mechanism with a worm screw, which acts as a brake when changing speed. Thus, with a simple reverse motion, you can slow down or completely stop the basket.

The drive is equipped with a freewheel, so there is no risk of the crank spinning during use. When you release the crank, the worm gear disengages immediately and the crank stops turning – always reliably and without any delay.

Technical Specifications of the Honey Extractor

  • Basket width: 24x48 cm
  • Basket type: classic with axle
  • Height of the extractor when assembled: 104 cm
  • Height of the extractor including drive: 120 cm
  • Height of the honey gate from the ground: 38 cm
  • Outer diameter of the drum: 52 cm
  • Direction of rotation: clockwise
  • Brake: yes
  • Freewheel: yes

Main Advantages of the Honey Extractor

  • Conical bottom with recessed honey gate – all honey always drains completely.
  • High-quality stainless steel materials with polished surface.
  • Baskets used feature a dense mesh – does not damage honeycombs.
  • Simple leg disassembly system – easy storage.
  • Easy removal of the drive and extractor basket – convenient cleaning.
  • High-quality manual drive with freewheel and brake

The honey extractors are from official German distribution. Depending on warehouse availability, they are supplied with black or grey legs.
