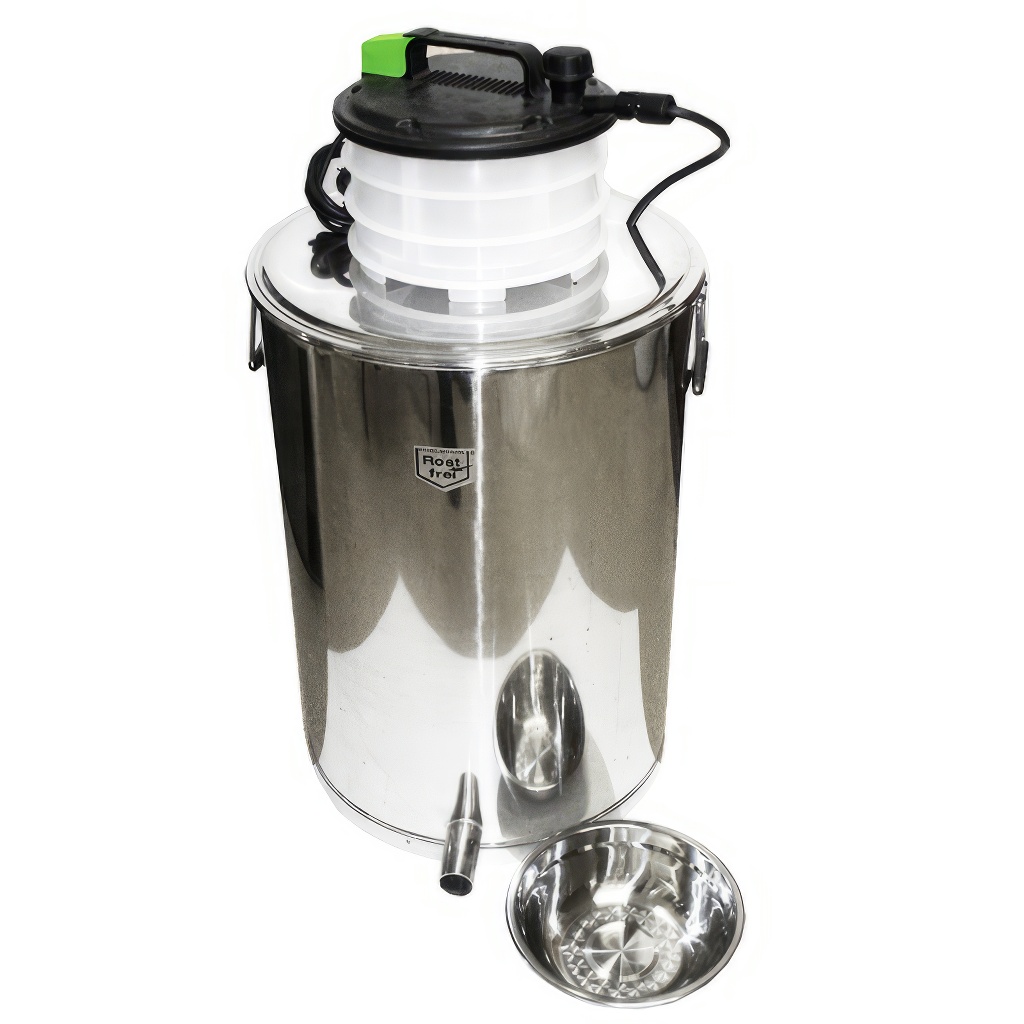

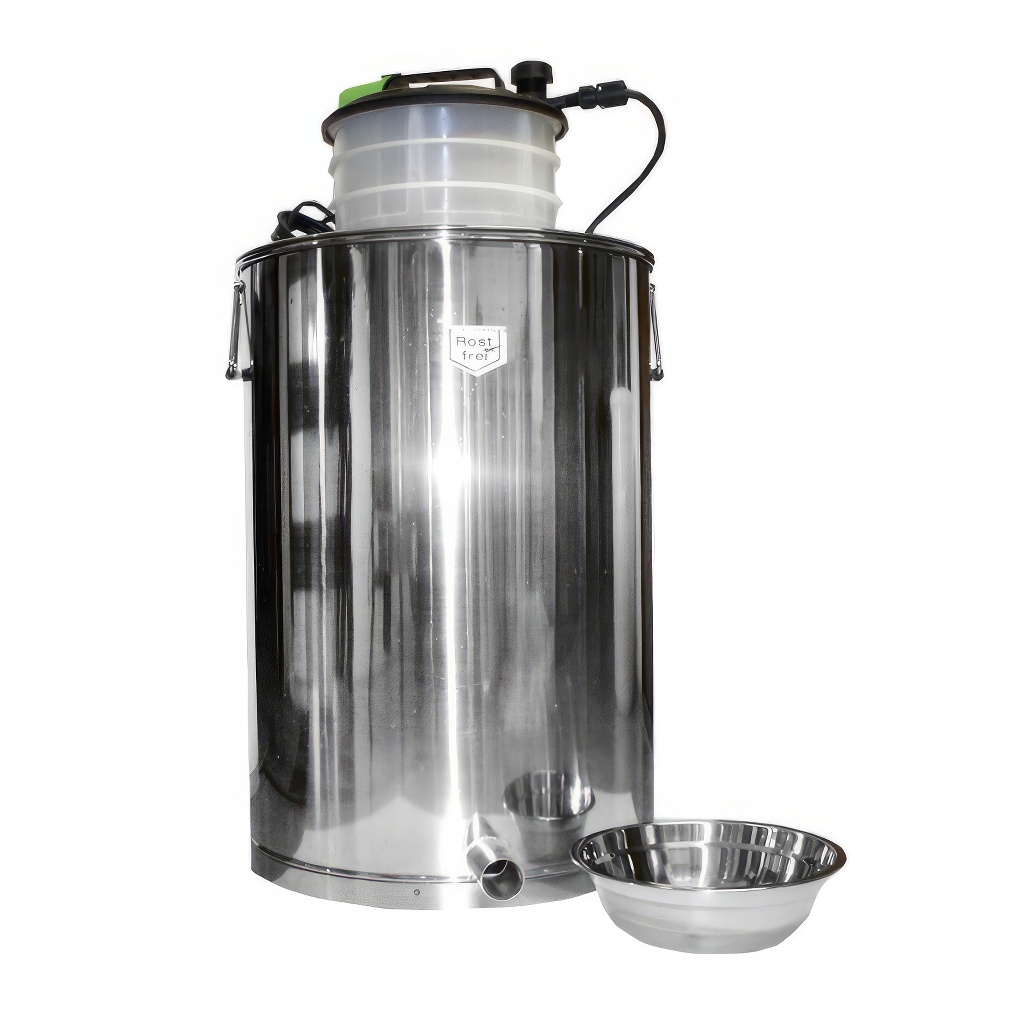

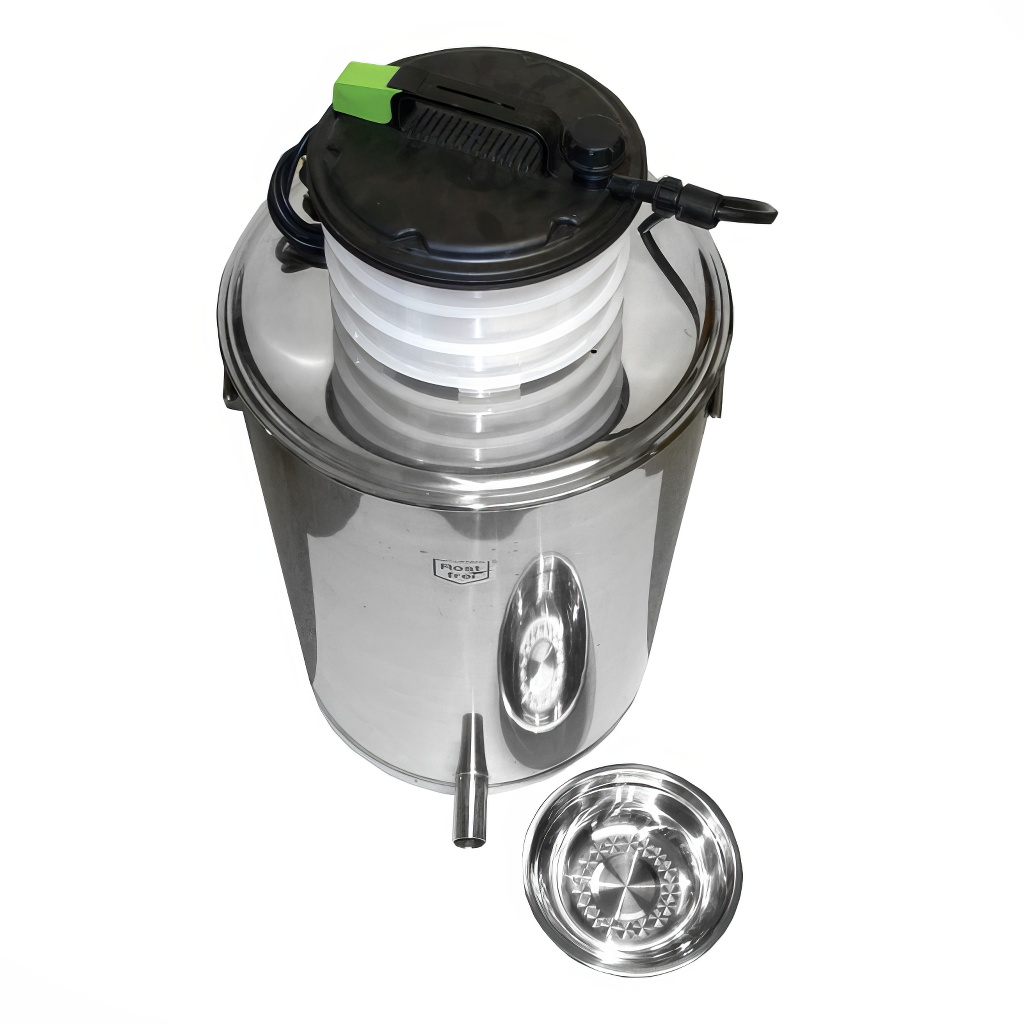

Round wax melter with steam generator

Stainless Steel Steam Wax Melter with 2 kW Steam Generator – Smaller Version

Make processing old dark comb and regular comb renewal easier. This stainless steel steam wax melter allows you to render wax directly from frames, without the need to cut out the comb beforehand. The smaller design offers a practical solution for beekeepers looking for easy-to-maintain equipment for processing used comb.

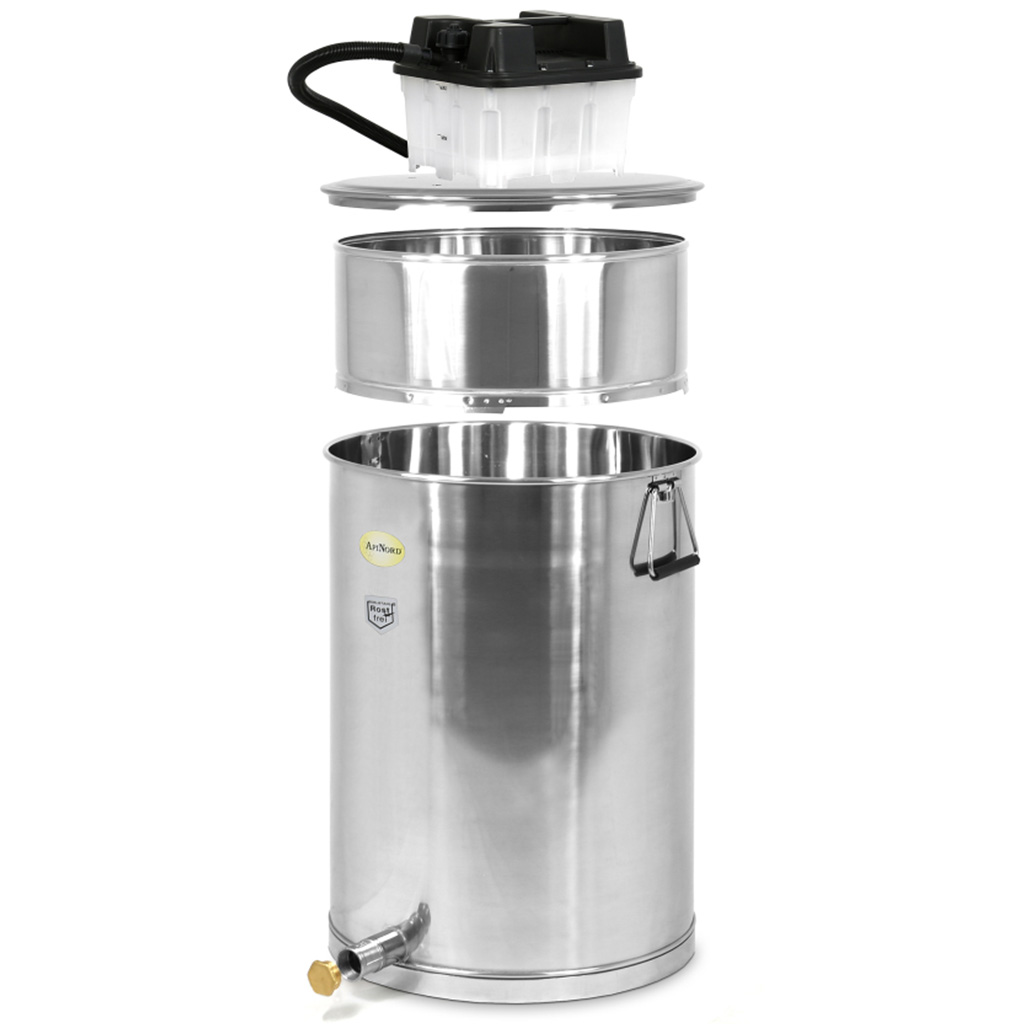

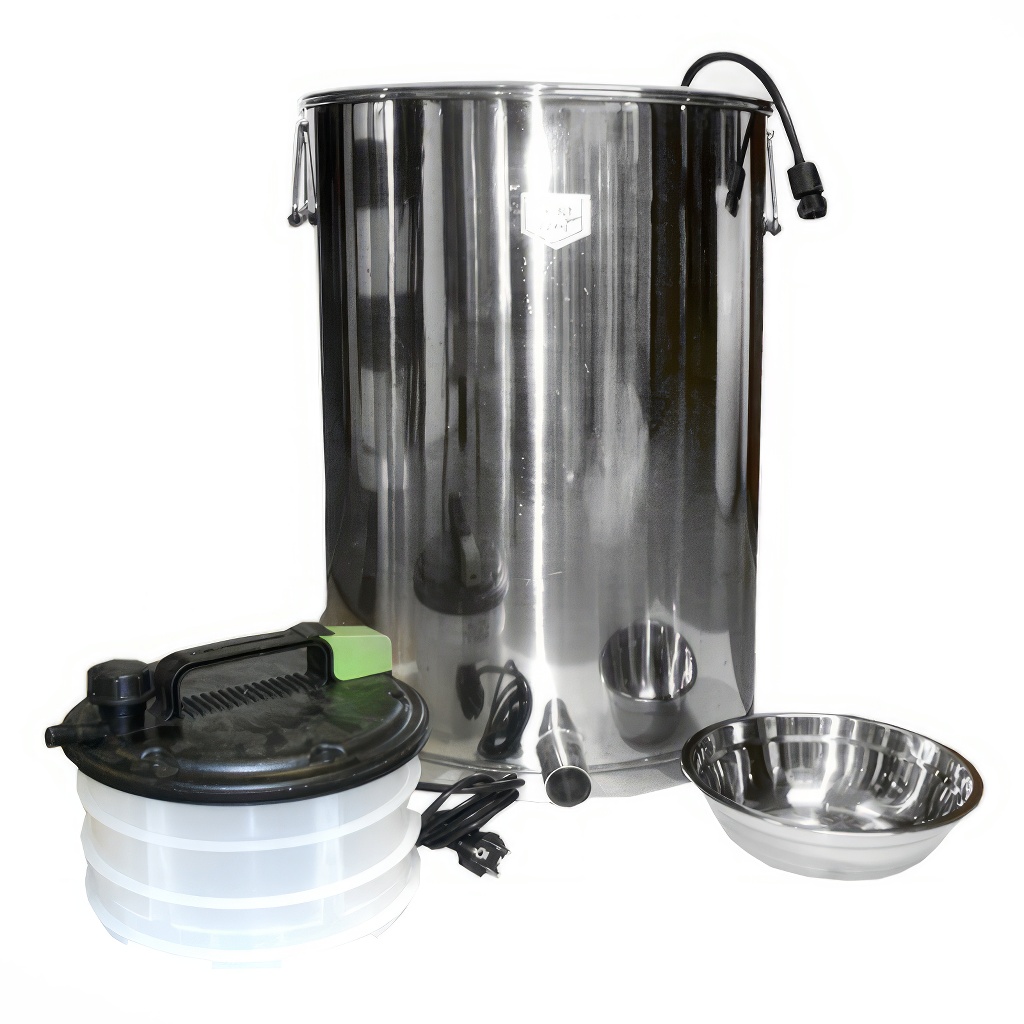

The set consists of a stainless steel tank with a frame basket and a 2 kW electric steam generator. The generator supplies hot steam into the tank, where the wax is gradually melted. The rendering process thus takes place without an open flame.

Key Benefits for Beekeepers

• Rendering directly from frames: There is no need to cut out the dark comb in advance. The basket holds approximately 8–10 frames of size 39 × 24, 39 × 27.5, or 39 × 30 cm, or a corresponding amount of cut-out comb.

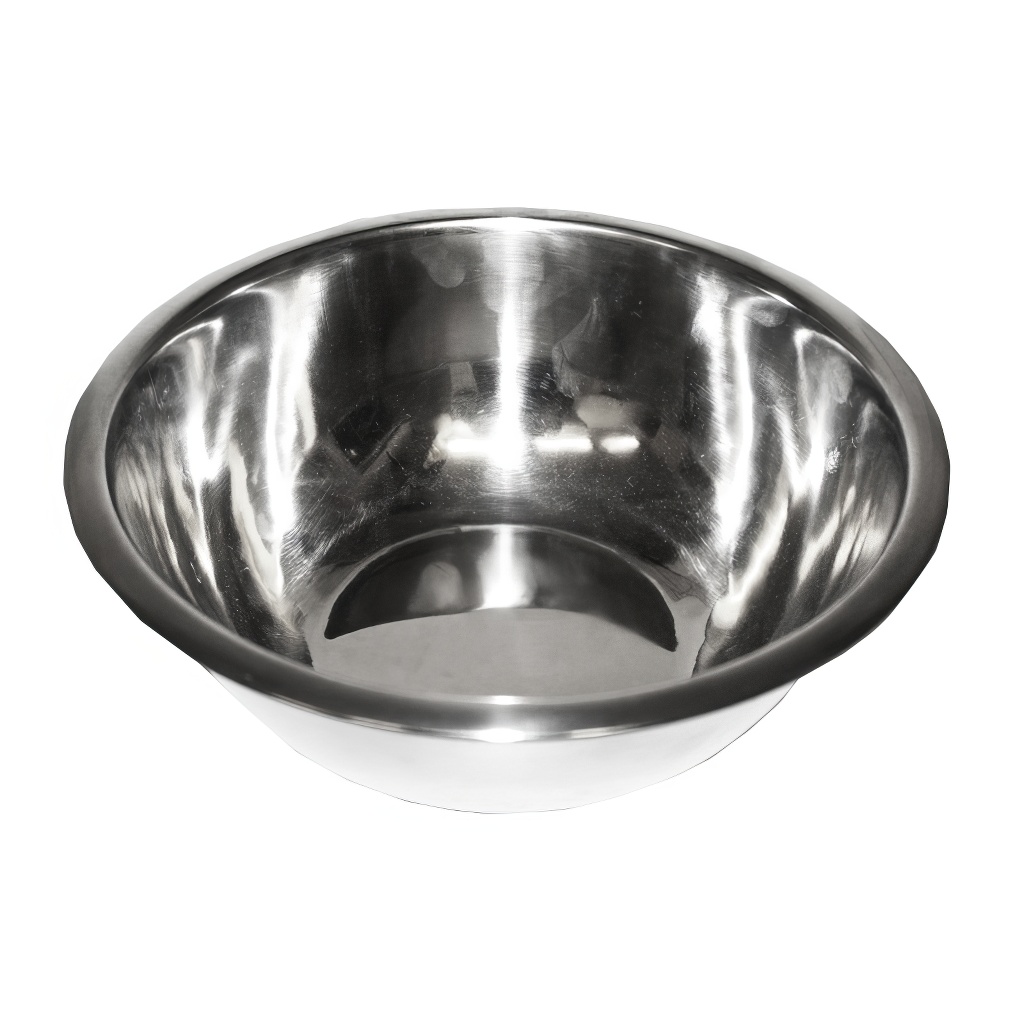

• Gentle wax processing: Hot steam gradually releases the wax from the dark comb without direct exposure to flame. The melted wax flows through the outlet into a prepared collection container.
• Electric steam source: The set includes a 2 kW steam generator, which, once filled with water and connected according to the instructions, produces the steam needed for rendering.

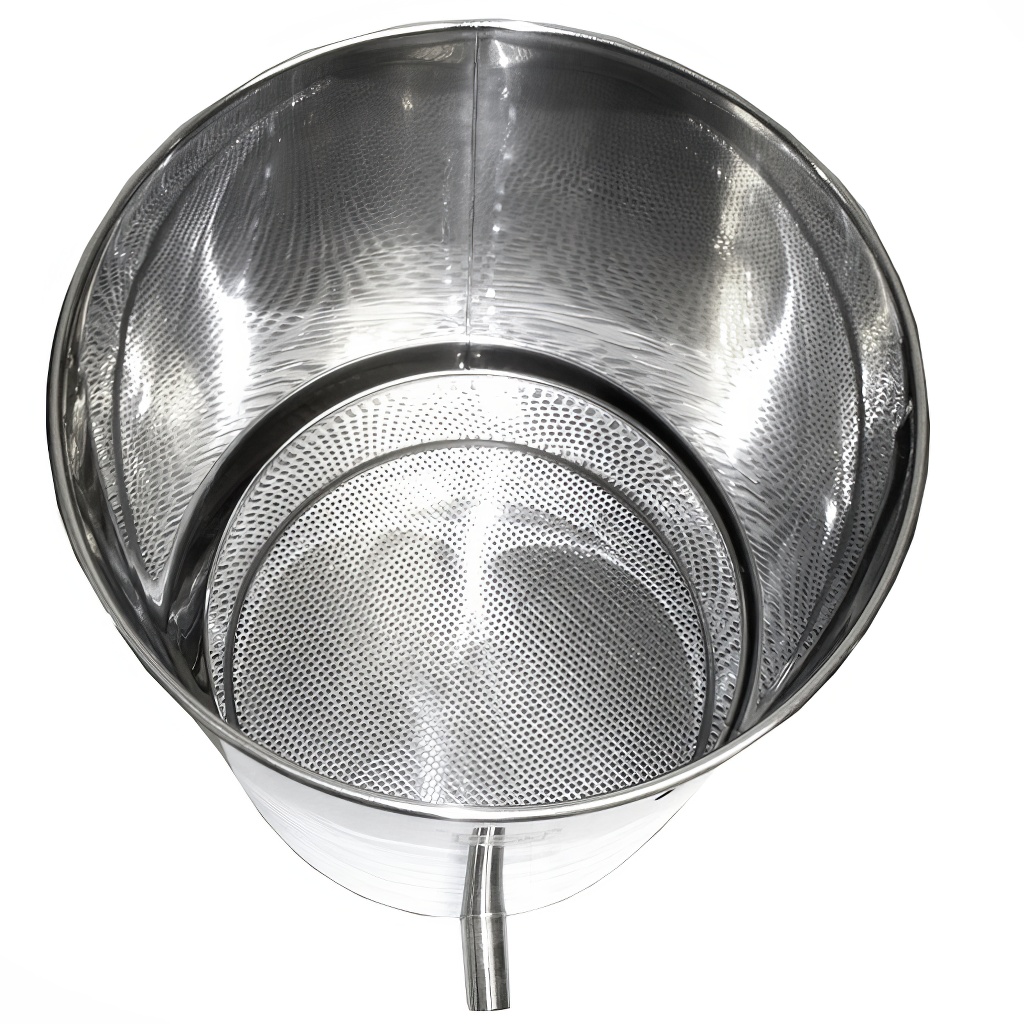

• Durable and easy-to-clean construction: The tank and basket are made of stainless steel, which is easy to maintain and suitable for regular use in beekeeping.

How the Wax Melter Works

Water is heated in the electric steam generator. The resulting steam is fed into the melter tank, passes through the basket containing the dark comb, and gradually melts the beeswax. The wax, together with the condensate, flows through the outlet into a container placed underneath. The basket catches the solid comb residues (slumgum) and makes their subsequent removal easier.

The rendering time depends on the quantity and condition of the dark comb, the initial temperature, and operating conditions. The water level in the steam generator needs to be monitored, and when refilling, always follow the manufacturer's instructions.

Technical Specifications

Instructions and Tips for Use

1. Prepare the work area. Place the melter and steam generator on a sturdy, level, and heat-resistant surface. Position a suitable container for wax and condensate under the outlet.
2. Load the basket. Insert frames with dark comb or cut-out comb and place the lid on the melter.
3. Prepare the steam generator. Fill it with water and connect it to the melter according to the manufacturer's instructions. Then plug it into the electrical supply and switch it on.
4. Monitor the rendering process. The wax will gradually flow out through the outlet. Keep an eye on the water level in the generator, prevent it from running dry, and refill water only following the procedure described in the instructions.
5. Clean the equipment after use. Switch off the generator, unplug it from the electrical supply, and allow the entire set to cool down. Remove the comb residues (slumgum) from the basket, clean the tank, and handle the remaining water according to the manufacturer's guidelines.

Warning: Protect yourself from hot steam, wax, and heated parts of the equipment during operation. Steam wax rendering facilitates frame cleaning but does not replace prescribed veterinary measures in the event of bee disease outbreaks.

Video Demonstration of Steam Wax Rendering

Watch the principle of wax rendering in a similar type of steam wax melter. The design and features of the equipment shown in the video may differ from this set.
