Honey Extractor Lysoň BASIC 4 frames, reversible. Langstroth - 230V - P72
On order
We present the 4-frame BASIC honey extractor designed for efficient extraction of honey from frames. This model is an indispensable helper for beekeepers who desire a reliable device with high capacity.
Lysoň Basic 4-Frame Reversible Honey Extractor for Langstroth Frames – 230 V – P72
The 4-cassette Lysoň honey extractor from the Basic Line series with a 72 cm drum diameter is designed for fast and convenient honey extraction from Langstroth frames. Thanks to the reversible cassette system, you extract gently yet efficiently – without unnecessary effort and with minimal intervention during the cycle. You can load up to 4 frames at once into the basket, which significantly speeds up work during honey harvest both in hobby apiaries and in operations with larger numbers of colonies.
The strong point of this honey extractor is its high degree of automation and reliable operation. The electric drive saves you manual turning and allows you to maintain a stable extraction process according to the type of comb and honey viscosity. Stainless steel construction from food-grade materials ensures hygiene, long service life, and easy cleaning after each batch – exactly what a beekeeper needs for smooth work without compromises.
Key Features and Practical Advantages
Safe operation in the beekeeping workshop: Integrated safety fuse stops the basket immediately upon opening the plexiglass lid. You gain security during operation even in the fast pace of honey harvest.

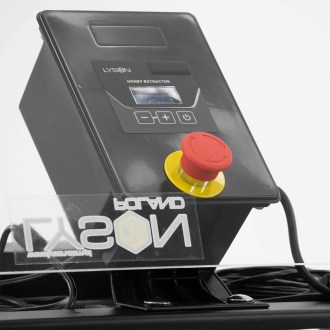

Automatic programs and manual control: The control unit offers 2 manual programs and 9 preset automatic cycles. You can easily select the mode according to capping, comb type, and current honey viscosity.
Stainless steel and thoughtful bottom for clean extraction: The drum and discharge valve are made of stainless steel. The tapered bottom supports smooth honey flow and helps reduce residue in the drum – less waste, faster work, and easier cleanup.
Quiet and stable operation thanks to bottom-mounted motor: The 12 V/150 W motor is mounted from below on a cross beam. The extractor is stable even at higher speeds and operates calmly and balanced.
Compact design and convenient handling: Foldable two-piece legs facilitate assembly and storage. The height of the discharge valve can be selected in two variants (370 mm or 410 mm from the ground), making it easier to work with honey containers. The extractor is delivered in sturdy cardboard in disassembled state for simple assembly without special tools.
Technical Specifications and Parameters
| Model Series | Basic Line, reversible (cassette) |
| Capacity and Frame Type | 4× Langstroth (or 8× Apipol) |

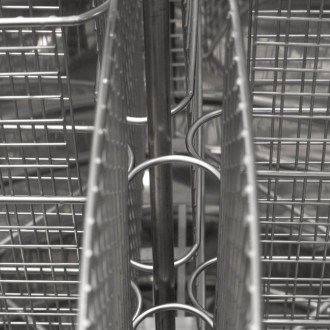

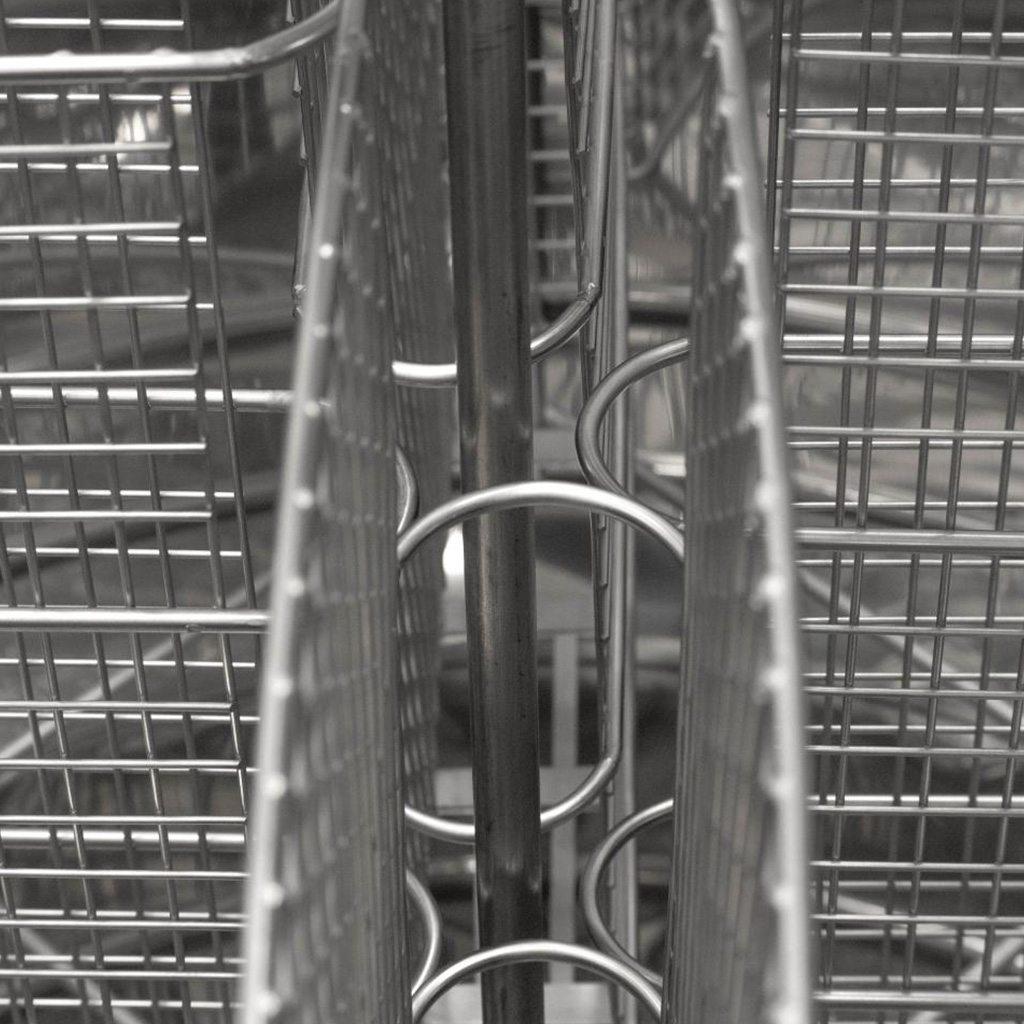

| Cassette Size | 425 × 250 mm (stainless steel bars Ø2 and Ø5 mm) |
| Drum Diameter and Height | Ø 720 mm / height 740 mm |
| Drum Material | Stainless steel sheet (0.6 mm thickness) |
| Drive and Power Supply | Electric bottom-mounted, 230 V |
| Motor and Control Unit | 12 V / 150 W, HE-01V unit (digital potentiometer) |
| Discharge Valve | Stainless steel 6/4" |
| Structural Elements | 4 mm plexiglass, 4 plastic hinges, powder-coated foldable legs and top bar |
The Lysoň Basic honey extractor is a practical choice for beekeepers who want modern reversible extraction, easy operation, and hygienic stainless steel construction at a reasonable price. Speed up your honey harvest, simplify your work in the beekeeping workshop, and rely on a dependable machine with a two-year warranty.
Video for 6-frame variant 2025:
