Honey Filling Machine FillOmat

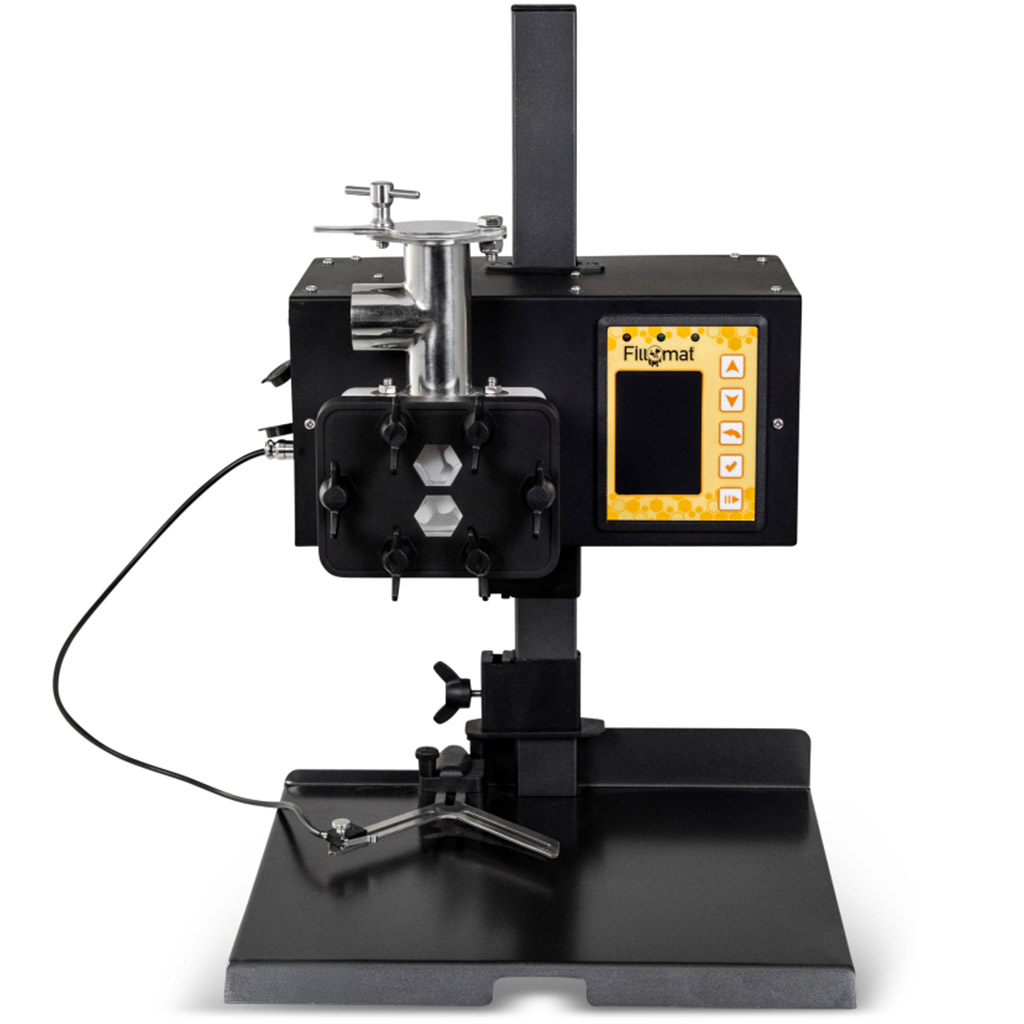

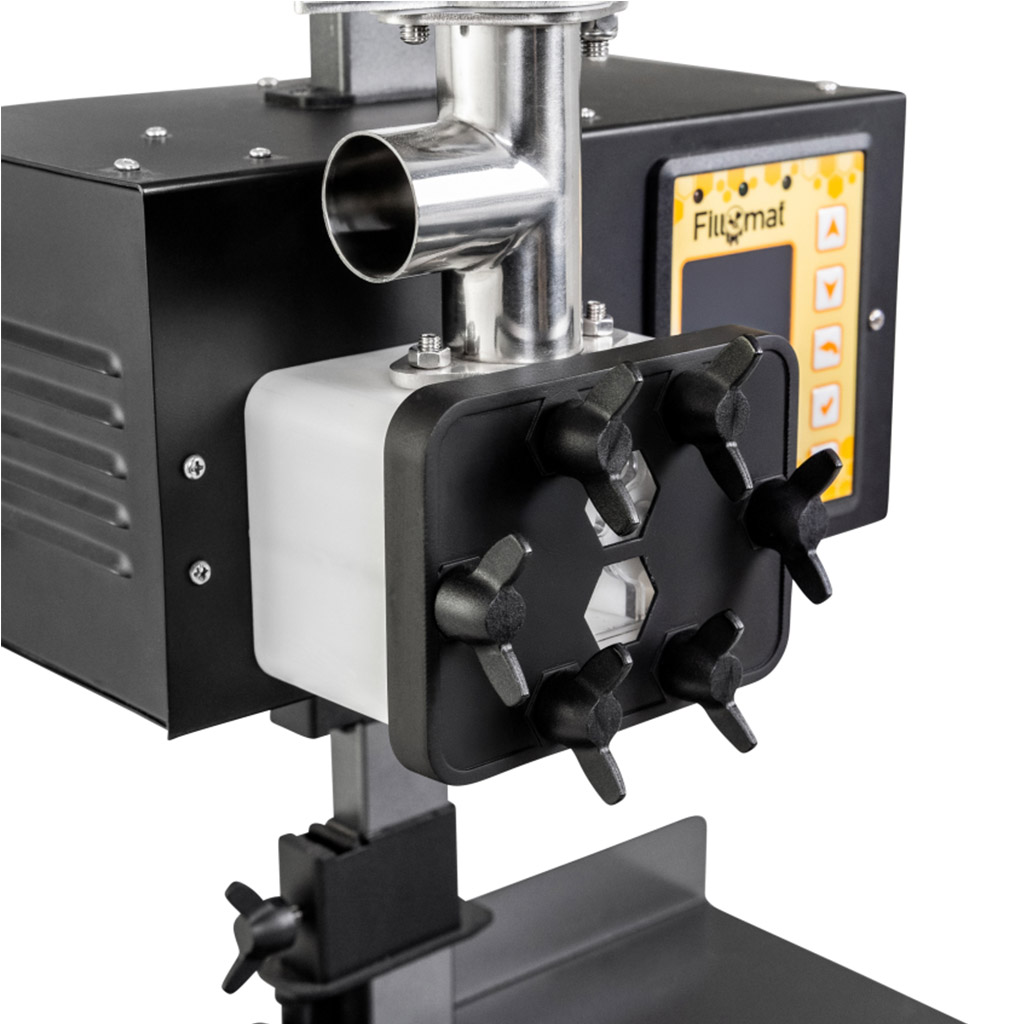

Honey Filler FillOmat® – Professional 3-in-1 Solution for Fast Bottling

Take honey bottling to the next level and eliminate tedious manual filling. The Honey Filler FillOmat® is a compact yet highly efficient honey house assistant that saves time, monitors precise weight, and helps keep jar necks and work surfaces clean.

It's not just a dispenser. Thanks to its modular design, it offers three functions in one device: precise filling, fast pumping, and honey creaming (crystallization control).

Why Choose FillOmat® for Your Honey House

Sore backs, sticky floors, and endless jar refilling? With FillOmat®, bottling becomes smooth, clean, and controllable work. What it brings you:

• Significant time savings: output of up to approximately 600 jars (500 g) per hour shortens work from days to one afternoon.

• Precise dosing without topping off: electronic control doses with accuracy of approximately ± 2 g. No more "just to be safe" extra or underweight jars.

• Clean jar necks and table: "non-drip" nozzles and check valve limit honey dripping and maintain order during bottling.

• Universal use: handles liquid and creamed/set honey. Interchangeable nozzles facilitate work with different jars and honey viscosity.

How FillOmat® Works in Practice

1. Automatic Jar Filling

Honey is drawn through a hose directly from the settling tank and dispensed into jars. Touch control allows easy setting of desired weight in the range of 30 g to 45 kg. For smooth filling, temperatures of 20–25 °C for fresh liquid honey and 26–35 °C for creamed honey with low water content are usually recommended.

2. Honey Pumping

When you need to move honey between containers, simply switch to pumping mode. With output up to 400 kg per hour, you can handle large volumes without manual effort.

3. Honey Creaming (Crystallization Control)

FillOmat® also helps with honey processing. Through cyclical pumping (so-called "crystal shearing"), you achieve fine, smooth set consistency. In practice, it's proven to seed the honey and then pump it 3–8 times with one-day intervals depending on crystallization speed and desired fineness.

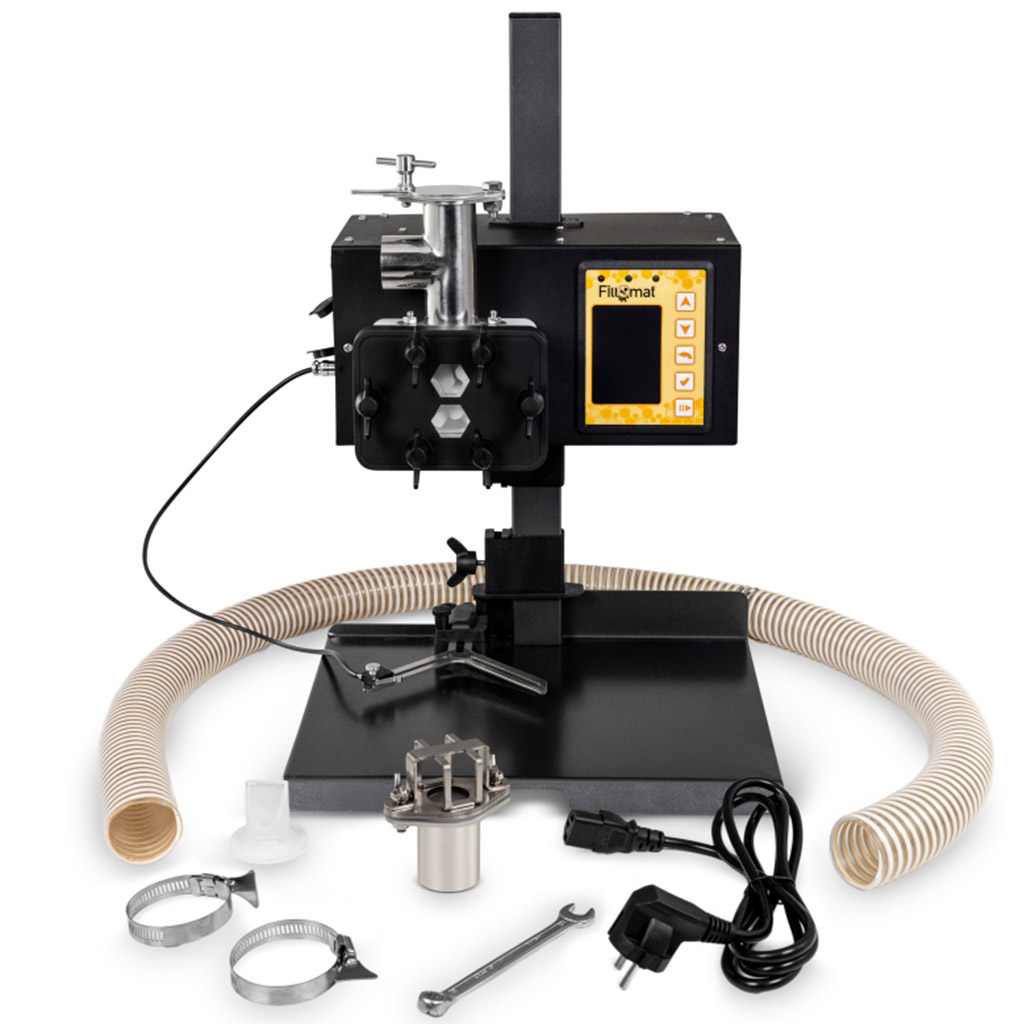

Package Contents

The device is supplied in "Ready-to-connect" version – plug in and start working. The package includes:

• filler with touch control

• black enameled frame with holder

• stainless steel switch with stop cross (filling activation by pressing jar)

• check valve and suction hose (1.5 m)

• 2 filling nozzles + stainless steel clamps

Technical Parameters

Note: For very thick and rapidly crystallizing honeys (e.g., rapeseed), it's advisable to gently warm the honey to approximately 25–35 °C before filling for smooth pump operation.

Safety and operating instructions provided in the supplied manual and applicable legal regulations for accident prevention must be observed.

Persons who are unable to operate this device safely due to their physical, sensory, or mental abilities, lack of experience or knowledge, must not use it, or may only use it under supervision or after training by a responsible person.

Improper or unauthorized modifications may impair device functionality and, if incorrectly performed, may lead to serious health and property damage. Unauthorized modifications typically void the warranty.

Blue icon with schematic image of a person reading a brochure

Read the supplied operating manual before use.

From the perspective of accident prevention regulations, this is an electric honey filler for which the following safety rules must be observed:

• Before working on electrical or mechanical parts, disconnect the device from the electrical network; do not pull the power cable; do not touch the device with wet hands – risk of electric shock!

• Do not work with explosive, flammable, or solvent-containing liquids. Risk of fire and explosion!

• Connect the device to a grounded outlet in accordance with the data on the nameplate. Use a residual current device with maximum rated tripping current of 30 mA and check it regularly.

• Before and after use, check the device and power cable for damage; operate the device only when properly assembled and the cover is not damaged.

• Protect the motor, control unit, and electrical parts from moisture, including during storage.
